Canyon Ridge Louver

Plantation-shutter slats — coastal character, insulated steel behind

Overview

Clopay Canyon Ridge® Louver is the plantation-shutter garage door. Horizontal composite slats sit on an insulated steel door — the slats do not move. Official comparison rating is five-layer construction with 2" Intellicore® and an R-value of 20.4 (some designs show steel at the base and publish as low as 18.4). Twelve designs in Series 4 (41–47) and Series 5 (51–55). Windows only on Design 52 (REC11/13/14, SQ23/24). Clear Cypress or Mahogany, Ultra-Grain® or solid-color steel bases on select models. Max size 20' 2" × 10' 0".

Louver is the door we show on coastal cottages, Mediterranean stucco, colonials, and modern farmhouses that already have shutter language. Neighbors notice it. Insulation is still a full Intellicore® door.

Insulation: R-18.4 to R-20.4

Overhead Door of America is an official Clopay dealer. Factory details: Clopay product page.

Recommended Opener

LiftMaster Elite Series

We size the opener to door weight, insulation, and your Wi-Fi / battery-backup needs.

View Openers Free In-Home Estimate

Why homeowners choose this door

Shutter look

Fixed horizontal slats — coastal without looking like every other carriage door.

R-18.4 to 20.4

2" Intellicore®. The slats are the face; the steel door does the work.

12 designs

Series 4 and 5 layouts. Windows on Design 52.

Mix materials

Mahogany overlay on Cypress base (or the reverse) plus two-tone color.

Looks right on

Coastal / beach cottage
Mediterranean
Colonial
Modern farmhouse

At a glance

Clopay model: Canyon Ridge® Louver
Layers: 5 (select designs show steel)
R-value: 18.4–20.4
Designs: 12 (windows on Design 52)
Max size: 20' 2" × 10' 0"

WindCode® reinforcement is available for Central Florida wind-load and coastal counties. We size hardware and reinforcement to your opening and local code.

Construction

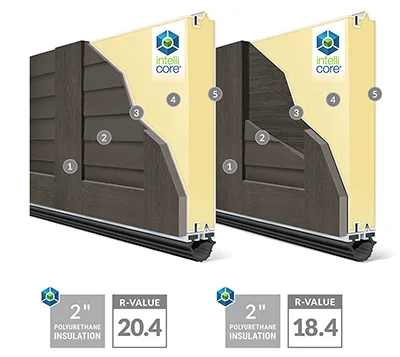

5-layer on fully clad designs: overlay + cladding + steel + 2" Intellicore® + steel
Some designs leave a woodgrain steel base visible under the slats
Moisture- and UV-resistant composite molded from real wood
Replaceable vinyl bottom seal; Safe-T-Bracket®

Design Options

Series 4 designs 41–47; Series 5 designs 51–55
Windows on Design 52 only
Spade handles standard; spear, colonial, decorative, knockers, strap hinges

Colors & finishes

Espresso, Natural, Walnut, Medium, Dark, Slate
Black, White, Bronze, Charcoal (Mahogany)
Two-tone; Color Blast®

Glass & windows

REC11, REC13, REC14, SQ23, SQ24 — Design 52 only

Questions we hear

Do the slats open like shutters?

No. The slats are fixed. An insulated steel door is behind them.

Can I get windows on any Louver design?

Windows are available on Design 52 only.

Can Overhead Door of America install a Canyon Ridge Louver on my home?

Yes. We are an official Clopay dealer. We measure the opening, confirm wind-load needs, help you choose color and windows, and install the door with a matching LiftMaster opener when you want one.

Do these doors work in Florida heat, humidity, and storms?

Yes. We specify rust-resistant hardware, proper weather seals, and WindCode® reinforcement where required. Insulated models also help keep an attached garage more comfortable in summer.
