Energy Series with Intellicore®
Polyurethane Intellicore® insulation for climate-controlled facilities
Models
| Model | Thickness | Emboss | Exterior Steel | Pattern | R-Value* | U-Factor* | Std Max Width** | Std Max Height |
|---|---|---|---|---|---|---|---|---|
| 3730 | 3" | Stucco | 27 Gauge | Minor Ribbed | 27.2 | 0.16 | 30'2" | 20'0" |
| 3724 | 2" | Stucco | 24 Gauge | Minor Ribbed | 18.4 | 0.19 | 36'2" | 20'0" |
| 3723 | 2" | Woodgrain | 27 Gauge | Raised Panel | 18.4 | 0.19 | 24'2" | 18'0" |
| 3722 | 2" | Stucco | 20 Gauge | Flush | 18.4 | 0.19 | 32'2" | 20'0" |
| 3721 | 2" | Woodgrain | 27 Gauge | Flush | 18.4 | 0.19 | 24'2" | 18'0" |
| 3720 | 2" | Stucco | 27 Gauge | Minor Ribbed | 18.4 | 0.19 | 40'2" | 20'0" |
| 3717 | 1 3/4" | Stucco | 27 Gauge | Minor Ribbed | 16.2 | 0.21 | 24'2" | 20'0" |
| 3718 | 1 3/4" | Stucco | 27 Gauge | Flush | 16.2 | 0.21 | 24'2" | 20'0" |
| 3715 | 1 3/8" | Stucco | 27 Gauge | Minor Ribbed | 12.9 | 0.21 | 18'2" | 16'0" |
Clopay's proprietary polyurethane Intellicore ® insulation *Calculated door section R-value is in accordance with DASMA TDS-163 *Tested door U-factor is in accordance with DASMA 105. **For sizes over 32'2" wide consult factory for specific configuration requirements.
Options
| 24" X 8" ( 3715, 3717, 3718, 3720, 3724, 3730 ) | 24" X 12" ( 3715, 3717, 3718, 3720, 3724, 3730 ) |
|---|---|
| Full-View* ( 3715, 3717, 3718, 3720, 3722, 3724 ) | 19-1/2" x 12" ( 3721, 3723 ) |
*Intellicore ® polyurethane insulated full-view sections available in models 3720, 3722 and 3724.
Glazing Material Options
*Mirrored and laminate not available in 1/2"
Glass thickness available in 1/8", 1/4" and 1/2". Tri-wall polycarbonate thickness available in 1/2". Low-E available on insulated glass.
*Available on select models.
Premium finishing options include:
- Custom Colors with Color Blast ® Garage Door Paint System
- Bronze, dark bronze, black or custom color anodized finishing available on full-view sections only
ControlGard® SD Chain Hoist The ControlGard® Chain Hoist features an integral braking system that only allows it to move when the user is actively pulling the chain, reducing the risk of expensive door damage and increasing the safety of users and those nearby.
Tek screws are used every 6” and at the ends of the sections to attach the top seal at the factory.
Glass Panel Options
| 24" X 8" ( 3715, 3717, 3718, 3720, 3724, 3730 ) | 24" X 12" ( 3715, 3717, 3718, 3720, 3724, 3730 ) |
|---|---|
| Full-View* ( 3715, 3717, 3718, 3720, 3722, 3724 ) | 19-1/2" x 12" ( 3721, 3723 ) |
*Intellicore ® polyurethane insulated full-view sections available in models 3720, 3722 and 3724.
Glazing Material Options
*Mirrored and laminate not available in 1/2"
Glass thickness available in 1/8", 1/4" and 1/2". Tri-wall polycarbonate thickness available in 1/2". Low-E available on insulated glass.
Color Options
*Available on select models.
Premium finishing options include:
- Custom Colors with Color Blast ® Garage Door Paint System
- Bronze, dark bronze, black or custom color anodized finishing available on full-view sections only
Performance Options Available
Speciality Options Available
ControlGard® SD Chain Hoist The ControlGard® Chain Hoist features an integral braking system that only allows it to move when the user is actively pulling the chain, reducing the risk of expensive door damage and increasing the safety of users and those nearby.
Factory Installed Top Seal
Tek screws are used every 6” and at the ends of the sections to attach the top seal at the factory.
Construction
| Panel Design: | 3" thick stucco embossed ribbed steel exterior |
|---|---|
| Steel Gauge: | 27 gauge (.016" min) exterior; 28 gauge (.016" min) interior |
| Joint Design: | Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section |
| Thermal Conductivity: | R-value 27.2* for maximum energy efficiency |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust prevention |
| Colors: | Snow mist white, commercial brown, Colorblast TM |
| Limited Warranty: | 10-year paint / 10-year delamination / one-year material & workmanship |
| Panel Design: | (3720 & 3724) 2" thick stucco embossed steel exterior with minor ribbed pattern (3722) 2" thick stucco embossed flush steel exterior |
|---|---|
| Steel Gauge: | (3720) 27 gauge (.016" min) exterior; 28 gauge (.016" min) interior (3724) 24 gauge (.022" min) exterior; 28 gauge (.016" min) interior (3722) 20 gauge (.034" min) exterior; 28 gauge (.016" min) interior |
| Joint Design: | Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section |
| Thermal Conductivity: | R-value 18.4* for maximum energy efficiency |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust perforation |
| Colors: | (3720) Standard white, glacier white, commercial tan, chocolate, mocha brown, gray, Trinar white, Trinar beige, charcoal and Color Blast™ (3724) Standard white, commercial tan, chocolate, black, gray, Trinar white and Colorblast ™ (3722) Standard white, chocolate and Colorblast ™ |
| Limited Warranty: | 10-year paint / 10-year delamination / one-year material & workmanship |
| Panel Design: | (3717) 1 3/4" thick stucco embossed steel exterior with minor ribbed pattern (3718) 1 3/4" thick stucco embossed flush steel exterior |
|---|---|
| Steel Gauge: | 27 gauge (.016" min) exterior; 28 gauge (.016" min) interior |
| Joint Design: | Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section |
| Thermal Conductivity: | R-value 16.2* for maximum energy efficiency |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust perforation |
| Colors: | Pre-painted snow mist white, commercial brown, tan or gray. Optional Trinar white. |
| Limited Warranty: | 10-year paint / 10-year delamination / one-year material & workmanship |
| Panel Design: | 1 3/8" thick stucco embossed steel with minor ribbing |
|---|---|
| Steel Gauge: | 27 gauge (.016" min) exterior; 28 gauge (.016" min) interior |
| Joint Design: | Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section |
| Thermal Conductivity: | R-value 12.9* for maximum energy efficiency |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust perforation |
| Colors: | Pre-painted snow mist white or commercial brown, tan and gray |
| Limited Warranty: | 10-year paint / 10-year delamination / one-year material & workmanship |
*Calculated door section R-value is in accordance with DASMA TDS-163.

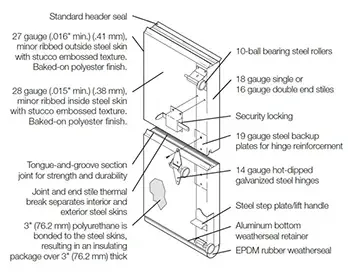

Model 3730
| Panel Design: | 3" thick stucco embossed ribbed steel exterior |
|---|---|
| Steel Gauge: | 27 gauge (.016" min) exterior; 28 gauge (.016" min) interior |
| Joint Design: | Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section |
| Thermal Conductivity: | R-value 27.2* for maximum energy efficiency |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust prevention |
| Colors: | Snow mist white, commercial brown, Colorblast TM |
| Limited Warranty: | 10-year paint / 10-year delamination / one-year material & workmanship |

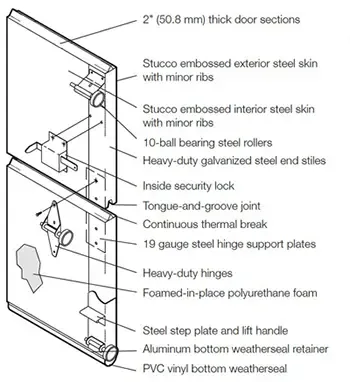

Model 3720 / 3724 / 3722
| Panel Design: | (3720 & 3724) 2" thick stucco embossed steel exterior with minor ribbed pattern (3722) 2" thick stucco embossed flush steel exterior |
|---|---|
| Steel Gauge: | (3720) 27 gauge (.016" min) exterior; 28 gauge (.016" min) interior (3724) 24 gauge (.022" min) exterior; 28 gauge (.016" min) interior (3722) 20 gauge (.034" min) exterior; 28 gauge (.016" min) interior |
| Joint Design: | Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section |
| Thermal Conductivity: | R-value 18.4* for maximum energy efficiency |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust perforation |
| Colors: | (3720) Standard white, glacier white, commercial tan, chocolate, mocha brown, gray, Trinar white, Trinar beige, charcoal and Color Blast™ (3724) Standard white, commercial tan, chocolate, black, gray, Trinar white and Colorblast ™ (3722) Standard white, chocolate and Colorblast ™ |
| Limited Warranty: | 10-year paint / 10-year delamination / one-year material & workmanship |

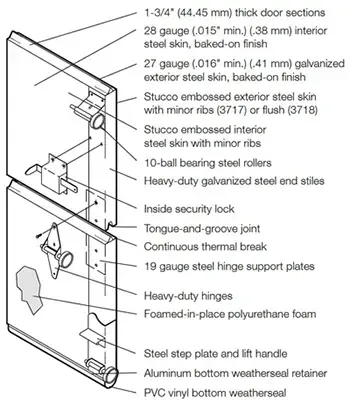

MODEL 3717 / 3718
| Panel Design: | (3717) 1 3/4" thick stucco embossed steel exterior with minor ribbed pattern (3718) 1 3/4" thick stucco embossed flush steel exterior |
|---|---|
| Steel Gauge: | 27 gauge (.016" min) exterior; 28 gauge (.016" min) interior |
| Joint Design: | Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section |
| Thermal Conductivity: | R-value 16.2* for maximum energy efficiency |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust perforation |
| Colors: | Pre-painted snow mist white, commercial brown, tan or gray. Optional Trinar white. |
| Limited Warranty: | 10-year paint / 10-year delamination / one-year material & workmanship |

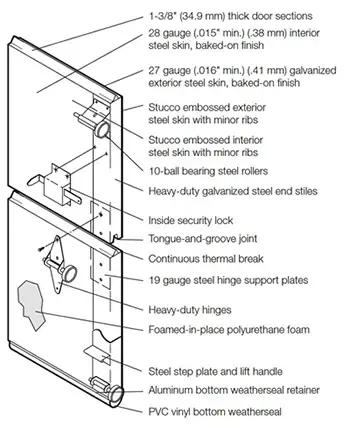

MODEL 3715
| Panel Design: | 1 3/8" thick stucco embossed steel with minor ribbing |
|---|---|
| Steel Gauge: | 27 gauge (.016" min) exterior; 28 gauge (.016" min) interior |
| Joint Design: | Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section |
| Thermal Conductivity: | R-value 12.9* for maximum energy efficiency |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust perforation |
| Colors: | Pre-painted snow mist white or commercial brown, tan and gray |
| Limited Warranty: | 10-year paint / 10-year delamination / one-year material & workmanship |
*Calculated door section R-value is in accordance with DASMA TDS-163.
Specs/Drawings
| Model | BIM | Shop Drawing | Specifications | Installation Manual | Warranty |
|---|---|---|---|---|---|
| Model 3715 | |||||
| Model 3717 | |||||
| Model 3718 | |||||
| Model 3720 | |||||
| Model 3722 | |||||
| Model 3724 | |||||
| Model 3730 |
Model 3717
- BIM
- Shop Drawing
- Specifications
- Installation Manual
- Warranty
Model 3718
- BIM
- Shop Drawing
- Specifications
- Installation Manual
- Warranty
Model 3720
- BIM
- Shop Drawing
- Specifications
- Installation Manual
- Warranty
Model 3722
- BIM
- Shop Drawing
- Specifications
- Installation Manual
- Warranty
Model 3724
- BIM
- Shop Drawing
- Specifications
- Installation Manual
- Warranty
Model 3730
- BIM
- Shop Drawing
- Specifications
- Installation Manual
- Warranty
Track And Jamb Drawings
| Model | DWG | DXF | |
|---|---|---|---|
| Standard Track | DWG | DXF | |
| Standard Track Follow the Roof Track | DWG | DXF | |
| Low Headroom–Rear Mount Track | DWG | DXF | |
| Low Headroom–Front Mount Track | DWG | DXF | |
| Vertical Track | DWG | DXF | |
| High Lift Follow-the-Roof Track | DWG | DXF | |
| High Lift Track | DWG | DXF | |
| Jamb Details | DWG | DXF | — |
Standard Track
- DWG
- DXF
Standard Track Follow the Roof Track
- DWG
- DXF
Low Headroom–Rear Mount Track
- DWG
- DXF
Low Headroom–Front Mount Track
- DWG
- DXF
Vertical Track
- DWG
- DXF
High Lift Follow-the-Roof Track
- DWG
- DXF
High Lift Track
- DWG
- DXF
Jamb Details
- DWG
- DXF
Brochures
Brochure Model 3715
Foamed in place Intellicore® polyurethane insulation provides strength, energy efficiency, and an R-value of 12.9.
Brochure Model 3717-3718
With an R-Value of 16.2, Models 3717 and 3718 are outfitted with our innovative Intellicore® polyurethane insulation to maximize energy efficiency.
Brochure Model 3720-3721-3723
These polyurethane insulated steel doors are durable, energy-efficient, and customizable with an R-Value of 18.4.
Brochure Model 3722
Model 3722 Polyurethane Insulated flush steel doors are designed for commercial and industrial facilities where demanding conditions require a rugged, energy-efficient door.
Brochure Model 3724
Our Model 3724 is a durable, versatile, and easy-to-maintain door for commercial and industrial use.
Brochure Model 3730
Clopay Model 3730 is for commercial and industrial facilities where ease of maintenance, versatility, durability and high R-value are important.
Brochure Commercial Idea Book
At Clopay, we take form and function seriously. From blueprints to reality, our expert engineers design commercial doors that exceed expectations for performance and elevated style.
Springs and Hardware
Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.
- 14 gauge hinges
- Commercial 10 ball steel rollers with options for nylon tire rollers
- 10,000 cycle torsion springs
- Steel step plate and lift handle for easy operation
- Inside slide lock for increase security
- 19 gauge steel hinge support plates
- 18-gauge single end stiles; 16-gauge double end stiles
- Galvanized aircraft cables with 7:1 safety factory
- 2” or 3” track in a variety of configurations to meet building design requirements
In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options.
Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles.
Our Architectural Design Support team has you covered!
Engage with our team of qualified professionals to address all of your door needs.
About Clopay/History
Share Your Style
Awards & Recognition
Griffon Corporation
Distribution Centers
Register Your Door
National Accounts
Copyright © 1996-2026 Clopay Corporation. All Rights Reserved
Commmercial Hardware
Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.
- 14 gauge hinges
- Commercial 10 ball steel rollers with options for nylon tire rollers
- 10,000 cycle torsion springs
- Steel step plate and lift handle for easy operation
- Inside slide lock for increase security
- 19 gauge steel hinge support plates
- 18-gauge single end stiles; 16-gauge double end stiles
- Galvanized aircraft cables with 7:1 safety factory
- 2” or 3” track in a variety of configurations to meet building design requirements
Commercial Track Applications
In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options.
Commercial Torsion Springs
Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles.
Our Architectural Design Support team has you covered!
Engage with our team of qualified professionals to address all of your door needs.
About Clopay/History
Share Your Style
Awards & Recognition
Griffon Corporation
Distribution Centers
Register Your Door
National Accounts
Copyright © 1996-2026 Clopay Corporation. All Rights Reserved
You may also like
Related Commercial Series
Architectural Series — Aluminum
Full-view aluminum doors for showrooms, fire stations, and modern storefronts
Architectural Series — Steel
Insulated steel sectional doors with architectural glass options
Energy Series
Polystyrene-insulated sectional doors for warehouses and docks
Extreme™ Series
High-speed sectional doors — up to 24" per second

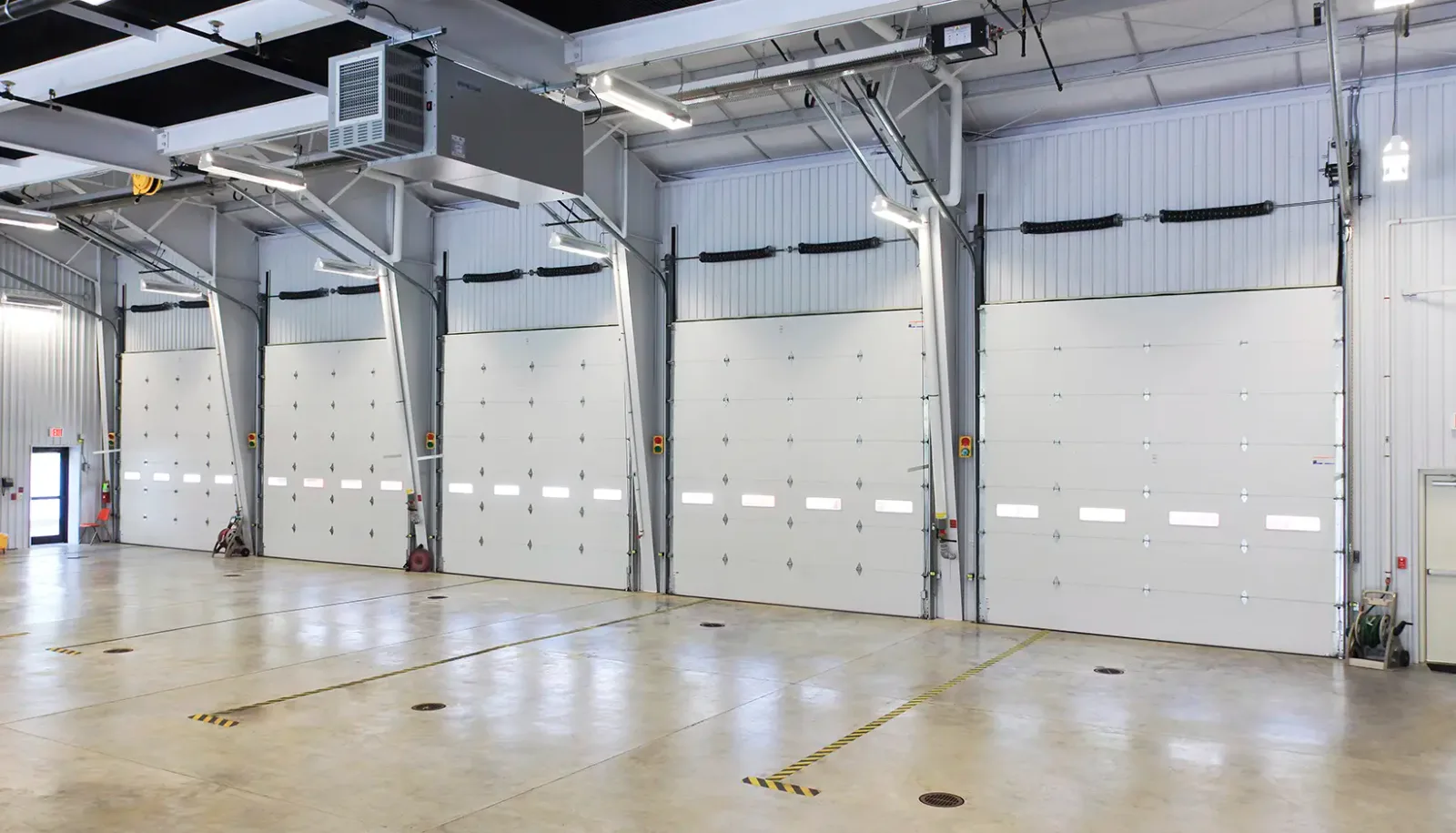

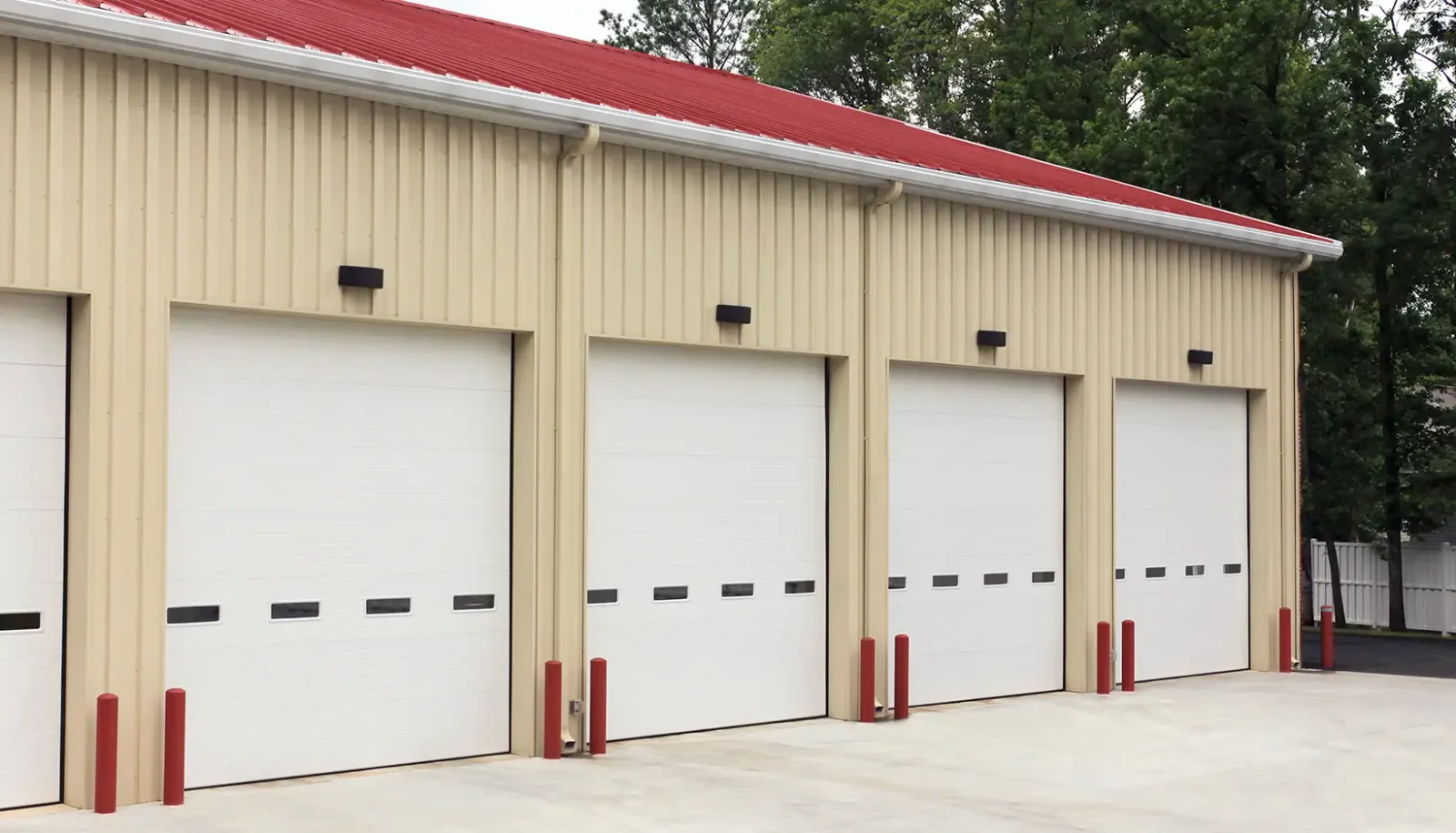

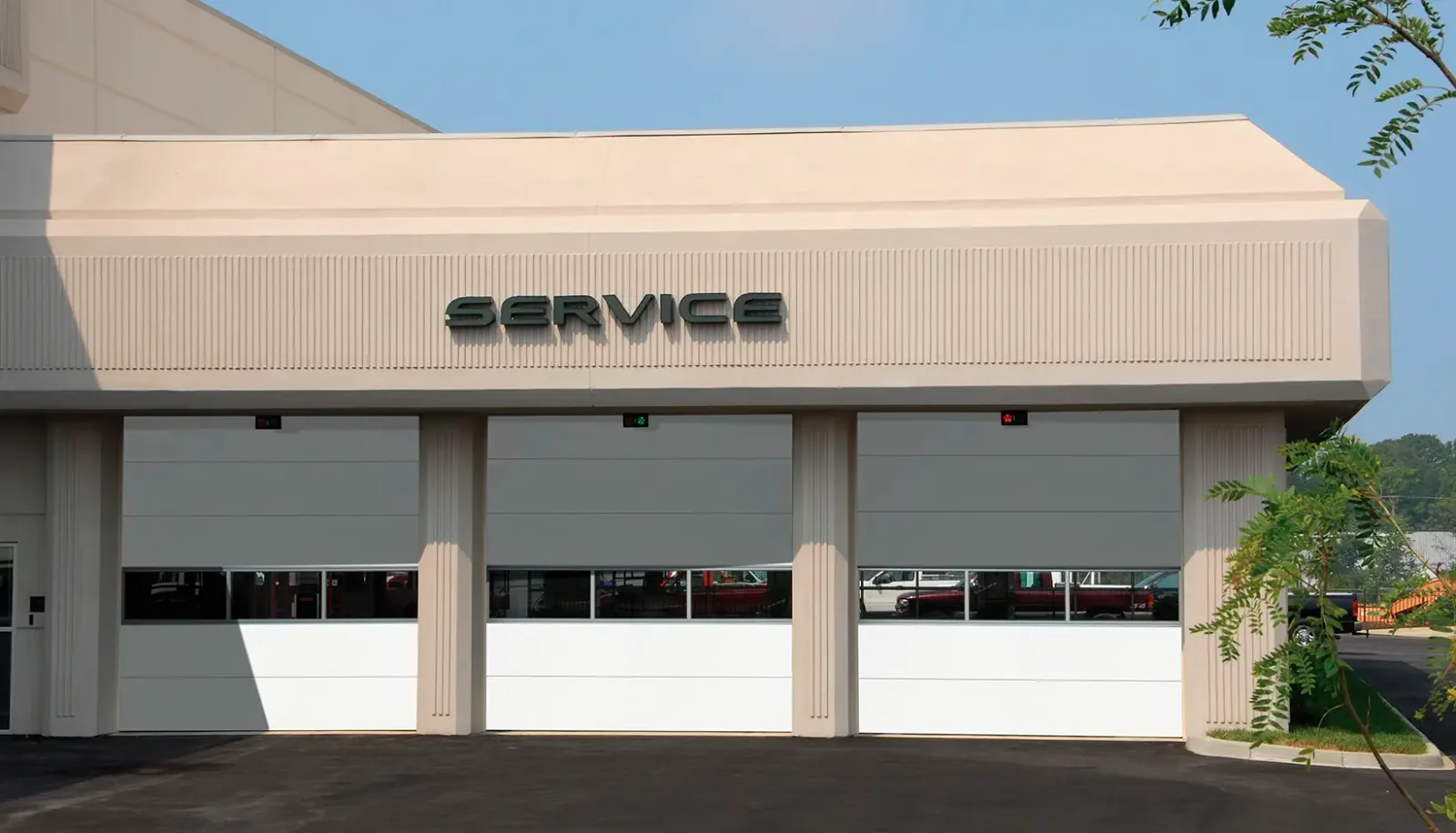

Request a commercial quote — Energy Series with Intellicore®
We measure, specify, and install Clopay commercial doors across Central Florida.
