Model 3150
- Shop Drawing
- Specifications
- Installation Manual
- Warranty
Clopay Authorized Dealer
Energy Series
Polystyrene-insulated sectional doors for warehouses and docks
Models
| Model | Section Thickness | Emboss | Ext. Steel Pattern | Ext. Steel Gauge | R-Value* | U-Factor* | Thermal Break | Max Width✭ | Max Height✭ |
|---|---|---|---|---|---|---|---|---|---|

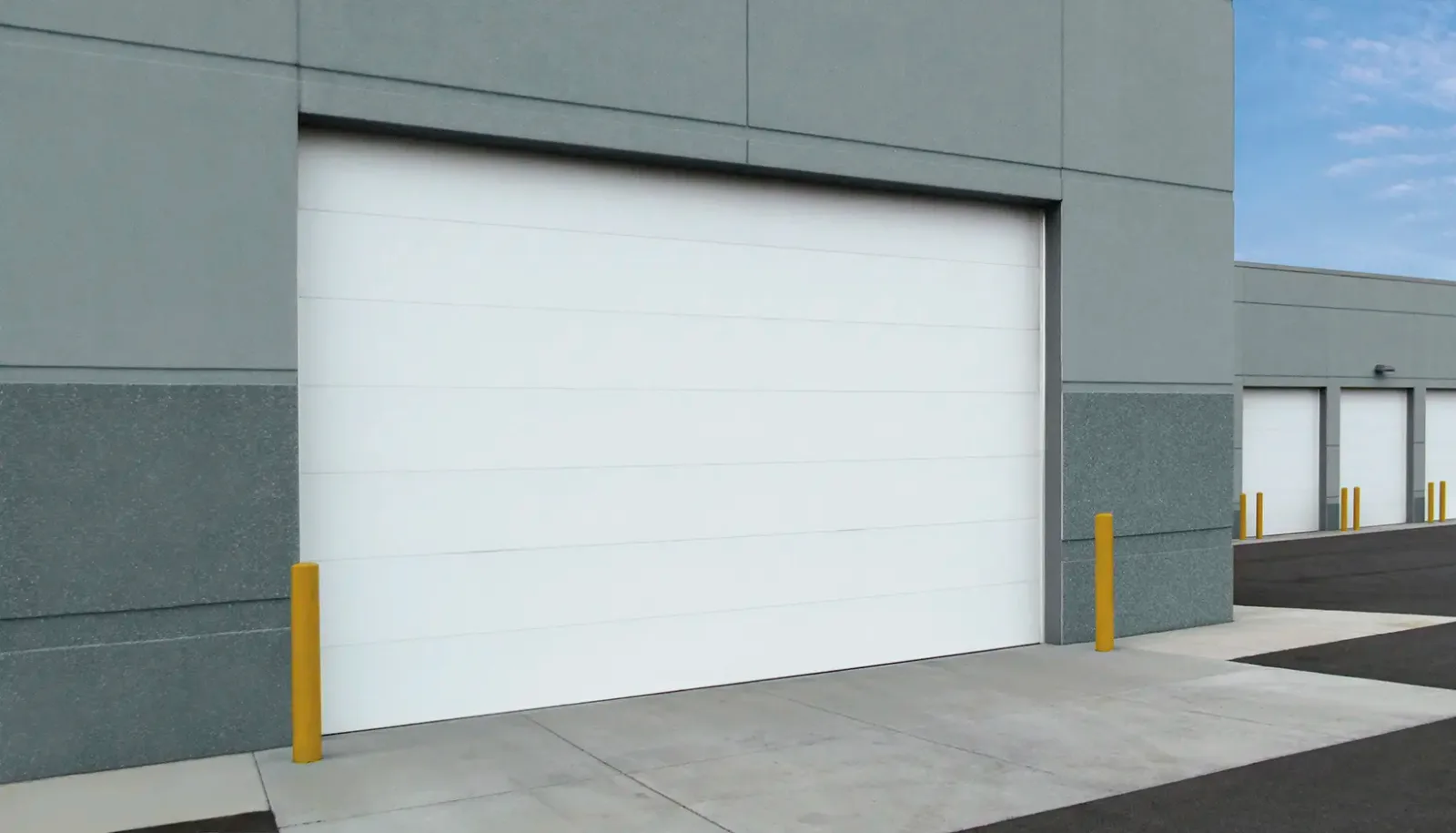

| 3220 | 2" | Stucco | Flush | 20 Gauge | 9.1 | 0.24 | Thermally broken | 26'2" | 20'0" |
| 3213 | 2" | Woodgrain | Raised panel | 24 Gauge | 9.1 | 0.24 | Thermally broken | 24'2" | 18'0" |
| 3211 | 2" | Woodgrain | Flush | 24 Gauge | 9.1 | 0.24 | Thermally broken | 24'2" | 18'0" |

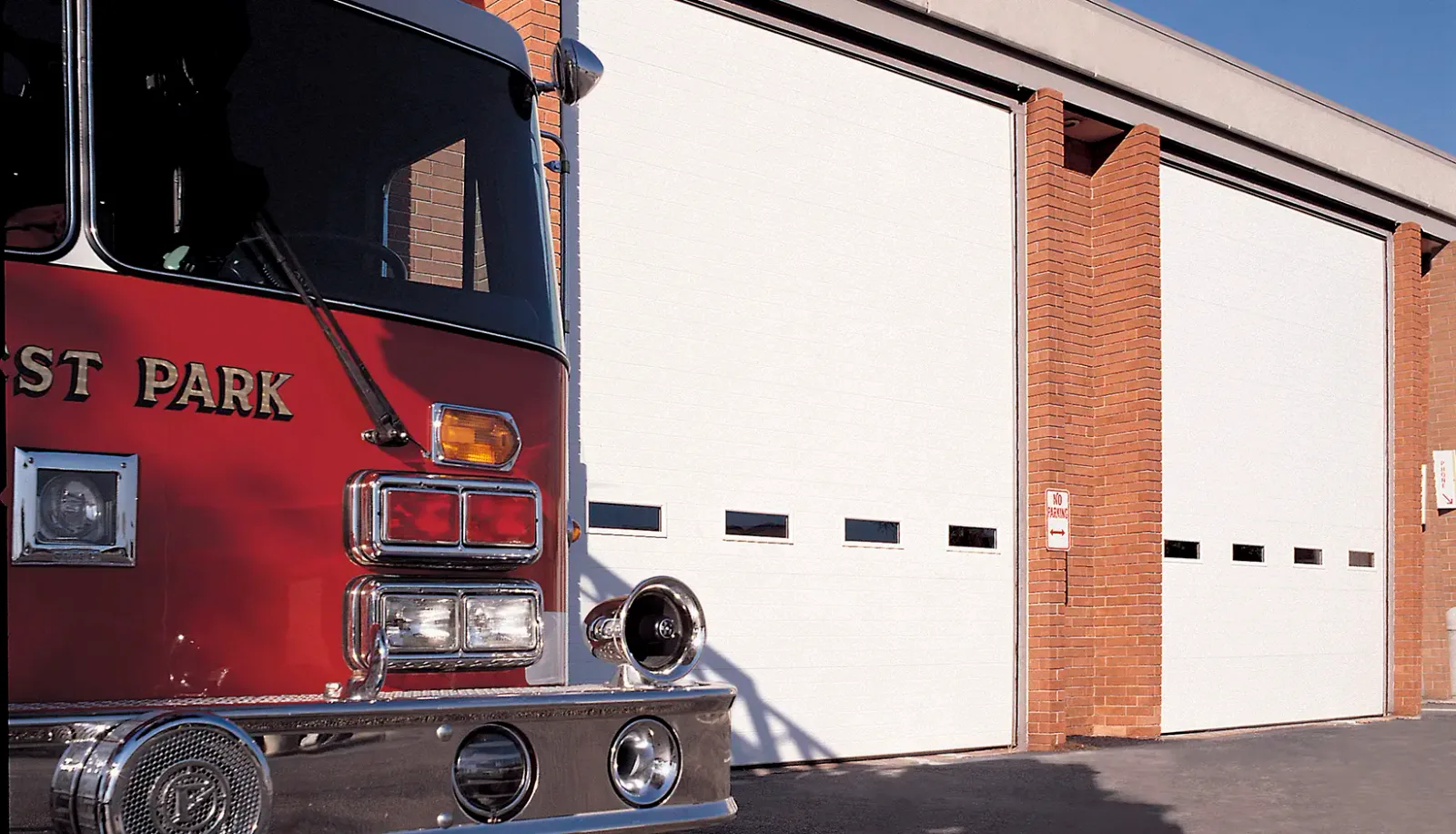

| 3200 | 2" | Stucco | Minor ribbed | 24 Gauge | 9.1 | 0.24 | Thermally broken | 26'2" | 18'0" |
| 3155 | 1-3/8" | Woodgrain | Flush panel | 27 Gauge | 6.5 | 0.3 | Thermally broken | 16'0" | 16'0" |
| 3154 | 1-3/8" | Woodgrain | Raised Panel | 27 Gauge | 6.5 | 0.3 | Thermally broken | 16'0" | 16'0" |
| 3150 | 1-3/8" | Stucco | Minor ribbed | 27 Gauge | 6.5 | 0.3 | Thermally broken | 16'0" | 16'0" |
*Calculated door section R-value is in accordance with DASMA TDS-163
*Tested door U-factor is in accordance with DASMA 105.
Options
| 24" X 8" (3150, 3200, 3220) | 24" X 12" (3150, 3200, 3220) |
|---|---|
| Full-View* (3150, 3200, 3220) | 19-1/2" x 12" ( 3154, 3155, 3211, 3213 ) |
*Aluminum Intellicore polyurethane full-view section available
Note: Windows available in insulated or insulated tempered glass.
*Mirrored and laminate not available in 1/2"
Glass thickness available in 1/8", 1/4" and 1/2". Tri-wall polycarbonate thickness available in 1/2". Low-E available on insulated glass.
*Available on select models.
25,000, 50,000 or 100,000 cycle springs available.
Tek screws are used every 6” and at the ends of the sections to attach the top seal at the factory.
Glass Panel Options
| 24" X 8" (3150, 3200, 3220) | 24" X 12" (3150, 3200, 3220) |
|---|---|
| Full-View* (3150, 3200, 3220) | 19-1/2" x 12" ( 3154, 3155, 3211, 3213 ) |
*Aluminum Intellicore polyurethane full-view section available
Note: Windows available in insulated or insulated tempered glass.
Glazing Material Options
*Mirrored and laminate not available in 1/2"
Glass thickness available in 1/8", 1/4" and 1/2". Tri-wall polycarbonate thickness available in 1/2". Low-E available on insulated glass.
Color Options
*Available on select models.
Performance Options Available
25,000, 50,000 or 100,000 cycle springs available.
Factory Installed Top Seal
Tek screws are used every 6” and at the ends of the sections to attach the top seal at the factory.
Specs/Drawings
| Model | BIM | Shop Drawing | Specifications | Installation Manual | Warranty |
|---|---|---|---|---|---|
| Model 3150 | — | ||||
| Model 3154 | — | ||||
| Model 3200 | — | ||||
| Model 3213 | — | ||||
| Model 3220 |
Model 3154
- Shop Drawing
- Specifications
- Installation Manual
- Warranty
Model 3200
- Shop Drawing
- Specifications
- Installation Manual
- Warranty
Model 3213
- Shop Drawing
- Specifications
- Installation Manual
- Warranty
Model 3220
- BIM
- Shop Drawing
- Specifications
- Installation Manual
- Warranty
Track And Jamb Drawings
| Model | DWG | DXF | |
|---|---|---|---|
| Standard Track | DWG | DXF | — |
| Standard Track Follow the Roof Track | DWG | DXF | |
| Low Headroom–Rear Mount Track | DWG | DXF | |
| Low Headroom–Front Mount Track | DWG | DXF | |
| Vertical Track | DWG | DXF | |
| High Lift Track | DWG | DXF | |
| High Lift Follow-the-Roof Track | DWG | DXF | |
| Jamb Details | DWG | DXF | — |
Standard Track
- DWG
- DXF
Standard Track Follow the Roof Track
- DWG
- DXF
Low Headroom–Rear Mount Track
- DWG
- DXF
Low Headroom–Front Mount Track
- DWG
- DXF
Vertical Track
- DWG
- DXF
High Lift Track
- DWG
- DXF
High Lift Follow-the-Roof Track
- DWG
- DXF
Jamb Details
- DWG
- DXF
Brochures
Model 3154 & 3155 Brochure
Clopay Insulated steel sectional doors come in contemporary or traditional styles with a charming woodgrain embossed texture.
Model 3150 Brochure
The Model 3150 is an energy-efficient door system with an R-Value of 6.5 and a 27-gauge exterior steel skin, making it both durable and energy-efficient.
Model 3200-3211-3213 Brochure
Our Energy Series Models 3200, 3211, and 3233 doors come with bonded polystyrene insulation and are designed with a 24-gauge steel skin and R-Value 9.1 for energy efficiency and comfort.
Brochure Model 3220
Energy Series Model 3220 doors are rugged, energy-efficient doors designed for commercial and industrial facilities.
Extended 8-Year Hardware Warranty
Facilities rely on their openings to get work done. That’s why we offer an Extended 8-Year Warranty for demanding applications.
Springs and Hardware
Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.
- 14 gauge hinges
- Commercial 10 ball steel rollers with options for nylon tire rollers
- 10,000 cycle torsion springs
- Steel step plate and lift handle for easy operation
- Inside slide lock for increase security
- 19 gauge steel hinge support plates
- 18-gauge single end stiles; 16-gauge double end stiles
- Galvanized aircraft cables with 7:1 safety factory
- 2” or 3” track in a variety of configurations to meet building design requirements
In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options.
Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles.
Our Architectural Design Support team has you covered!
Engage with our team of qualified professionals to address all of your door needs.
About Clopay/History
Share Your Style
Awards & Recognition
Griffon Corporation
Distribution Centers
Register Your Door
National Accounts
Copyright © 1996-2026 Clopay Corporation. All Rights Reserved
Commercial Hardware
Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.
- 14 gauge hinges
- Commercial 10 ball steel rollers with options for nylon tire rollers
- 10,000 cycle torsion springs
- Steel step plate and lift handle for easy operation
- Inside slide lock for increase security
- 19 gauge steel hinge support plates
- 18-gauge single end stiles; 16-gauge double end stiles
- Galvanized aircraft cables with 7:1 safety factory
- 2” or 3” track in a variety of configurations to meet building design requirements
Commercial Track Options
In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options.
Commercial Torsion Springs
Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles.
