Extreme™ Series
High-speed sectional doors — up to 24" per second
Models
| Max Width | 16'2" |
|---|---|
| Max Height | 14'0" |
| Max Door Weight | 1,000 lbs |
| Upward Travel | 24" per second |
| Downward Travel | 15" per second |
| Stiles | Double end stiles (standard) |
| Glazing Available | Tempered, insulated tempered, acrylic and polygal |
| Springs* | 50,000 cycle standard (Max cycles available on a single shaft line) |
| Track Size | 2" angle mount track standard 3" track where applicable |
| Track Type | Standard lift, high lift and full vertical |
| Warranty | Standard paint – 5 years Color Blast® finish – 5 years Material and workmanship – 1 year Hardware – 1 year |
| *Cycles can vary depending on door configuration. |
The Clopay Extreme™ Series High Performance Door System boasts an opening speed of 24" per second, allowing productivity to flourish while also delivering a flawless aesthetic thanks to optional full-view windows. Tandem nylon rollers improve roller life and reduce running noise for smooth, quiet operation while safety stays top of mind with enhanced features such as 3' of light curtain protection, a cable management system and standard cable tension monitor.
For operator specifications, click here.
| Model | Thickness | Spacing | R-Value | Max Width* | Max Height* |
|---|---|---|---|---|---|
| EX904 | 2-1/8" | Equal width & spacing | - | 16'2" | 14'0" |
| EX904U*** | 2-1/8" | Equal width & spacing | 3.8** | 16'2" | 14'0" |
*Maximum Width and Height values listed are Standard sizing. **With clear insulated glass ***With Clopay's proprietary polyurethane Intellicore insulation.
| Model | Section Thickness | Emboss | Exterior Gauge | Section Design | Insulation | R-Value Solid* | R-Value w/Glass** | Thermal Break | Max Width✭ | Max Height✭ |
|---|---|---|---|---|---|---|---|---|---|---|
| EX3729 | 2" | Stucco | 27 | Minor Ribbed | Polyurethane*** | 18.4 | 8.0 | Yes | 16'2" | 14'0" |
| EX3728 | 2" | Stucco | 27 | Flush | Polyurethane*** | 18.4 | 8.0 | Yes | 16'2" | 14'0" |
| EX3709 | 1-3/8" | Stucco | 27 | Minor Ribbed | Polyurethane*** | 12.9 | 5.9 | Yes | 16'2" | 14'0" |
| EX3708 | 1-3/8" | Stucco | 27 | Flush | Polyurethane*** | 12.9 | 5.9 | Yes | 16'2" | 14'0" |
| EX3209 | 2" | Stucco | 24 | Minor Ribbed | Polystyrene | 9.1 | 4.4 | Yes | 16'2" | 14'0" |
| EX3208 | 2" | Stucco | 24 | Flush | Polystyrene | 9.1 | 4.4 | Yes | 16'2" | 14'0" |
| EX3159 | 1-3/8" | Stucco | 27 | Minor Ribbed | Polystyrene | 6.5 | 3.4 | Yes | 16'2" | 14'0" |
| EX3158 | 1-3/8" | Stucco | 27 | Flush | Polystyrene | 6.5 | 3.4 | Yes | 16'2" | 14'0" |
*R-values calculated per DASMA TDS-163 on a solid door **R-values calculated per DASMA TDS-163 using weighted average with 3/4" insulated glass. ***Clopay's proprietary polyurethane Intellicore insulation. ✭Maximum Width and Height values listed are Standard sizing.
| Model | Section Thickness | Emboss | Ext. Steel Pattern | Ext. Steel Gauge | R-Value* | Thermal Break | Max Width✭ | Max Height✭ |
|---|---|---|---|---|---|---|---|---|
| EX3220 | 2" | Stucco | Flush | 20 Gauge | 9.1 | Thermally broken | 16'2" | 14'0" |
| EX3213 | 2" | Woodgrain | Raised panel | 24 Gauge | 9.1 | Thermally broken | 16'2" | 14'0" |
| EX3211 | 2" | Woodgrain | Flush | 24 Gauge | 9.1 | Thermally broken | 16'2" | 14'0" |
| EX3200 | 2" | Stucco | Minor ribbed | 24 Gauge | 9.1 | Thermally broken | 16'2" | 14'0" |
| EX3150 | 1-3/8" | Stucco | Minor ribbed | 27 Gauge | 6.5 | Thermally broken | 16'2" | 14'0" |
*Calculated door section R-value is in accordance with DASMA TDS-163
| Model | Thickness | Emboss | Exterior Steel | Pattern | R-Value* | Std Max Width** | Std Max Height |
|---|---|---|---|---|---|---|---|
| EX3723 | 2" | Woodgrain | 27 Gauge | Raised Panel | 18.4 | 16'2" | 14'0" |
| EX3721 | 2" | Woodgrain | 27 Gauge | Flush | 18.4 | 16'2" | 14'0" |
| EX3720 | 2" | Stucco | 27 Gauge | Minor Ribbed | 18.4 | 16'2" | 14'0" |
| EX3717 | 1 3/4" | Stucco | 27 Gauge | Minor Ribbed | 16.2 | 16'2" | 14'0" |
| EX3718 | 1 3/4" | Stucco | 27 Gauge | Flush | 16.2 | 16'2" | 14'0" |
| EX3715 | 1 3/8" | Stucco | 27 Gauge | Minor Ribbed | 12.9 | 16'2" | 14'0" |
Clopay's proprietary polyurethane Intellicore ® insulation *Calculated door section R-value is in accordance with DASMA TDS-163 **For sizes over 32'2" wide consult factory for specific configuration requirements.
| Motor Design | 1.25 HP configuration serving single phase 115V/230V and 3-phase 230V configurations 3-phase 460/575V available with accessory transformer |
|---|---|
| Wall Controller | Separation of low and high voltage wiring - includes functionality of 3-button station, PLUS setting door profile, programming limits, diagnostics |
| Programming | Complete the following programming at floor level: set limits; choose door profiles for speed; set operating modes; select photo entrapment devices |
| Display | Provides textual status indications including - Absolute cycle count - Service cycle count - Diagnostics messages - Door/operator status |
| Cycle Counter | Re-settable cycle counter via the wall controller and/or through MyQ facility |
| Limit Settings | Simple electronic push-button setup via the wall controller |
Standard Specifications
| Max Width | 16'2" |
|---|---|
| Max Height | 14'0" |
| Max Door Weight | 1,000 lbs |
| Upward Travel | 24" per second |
| Downward Travel | 15" per second |
| Stiles | Double end stiles (standard) |
| Glazing Available | Tempered, insulated tempered, acrylic and polygal |
| Springs* | 50,000 cycle standard (Max cycles available on a single shaft line) |
| Track Size | 2" angle mount track standard 3" track where applicable |
| Track Type | Standard lift, high lift and full vertical |
| Warranty | Standard paint – 5 years Color Blast® finish – 5 years Material and workmanship – 1 year Hardware – 1 year |
| *Cycles can vary depending on door configuration. |
High Performance Door System Powered by LiftMaster
The Clopay Extreme™ Series High Performance Door System boasts an opening speed of 24" per second, allowing productivity to flourish while also delivering a flawless aesthetic thanks to optional full-view windows. Tandem nylon rollers improve roller life and reduce running noise for smooth, quiet operation while safety stays top of mind with enhanced features such as 3' of light curtain protection, a cable management system and standard cable tension monitor.
For operator specifications, click here.

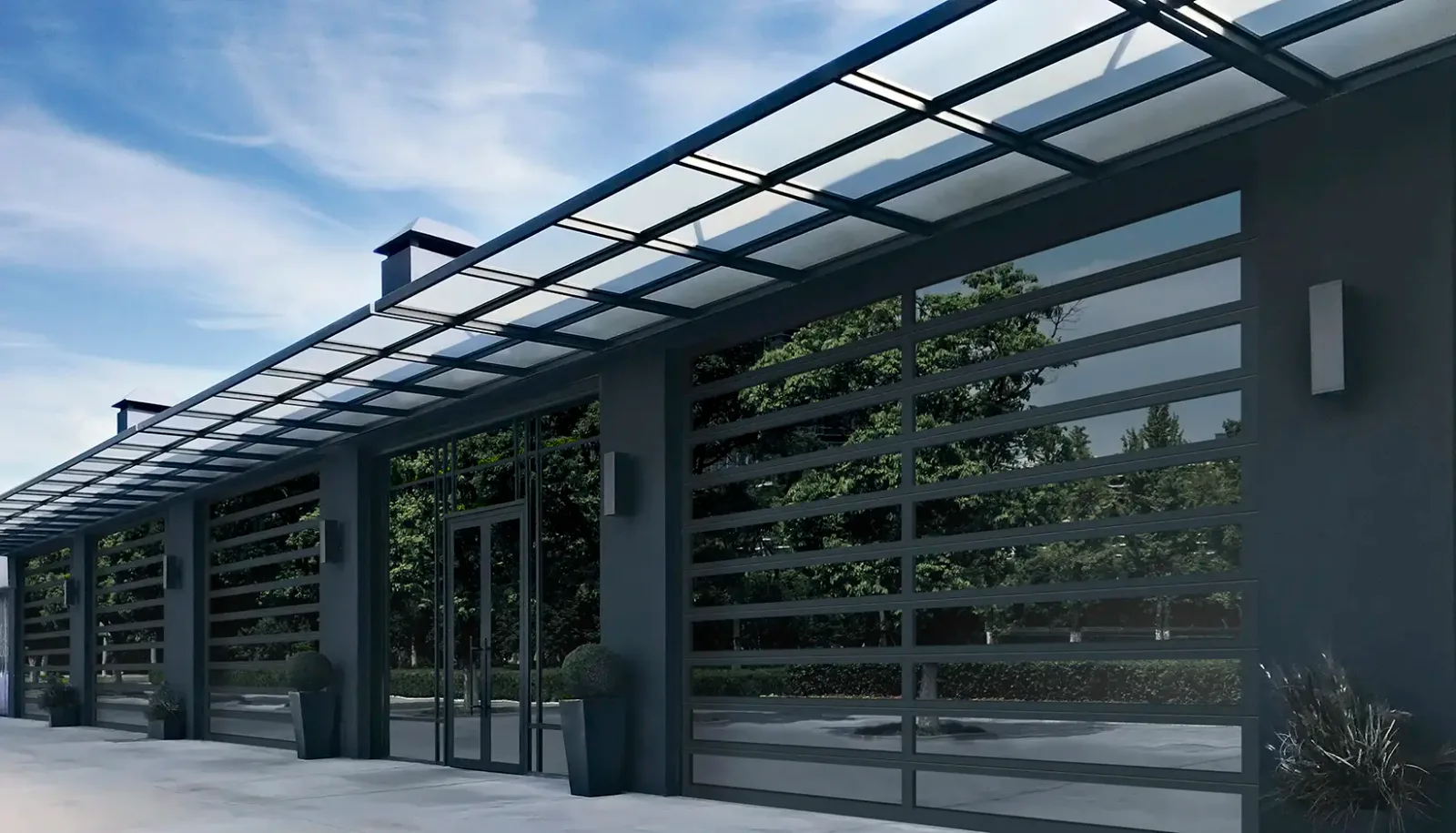

Aluminum Full-View Doors
| Model | Thickness | Spacing | R-Value | Max Width* | Max Height* |
|---|---|---|---|---|---|
| EX904 | 2-1/8" | Equal width & spacing | - | 16'2" | 14'0" |
| EX904U*** | 2-1/8" | Equal width & spacing | 3.8** | 16'2" | 14'0" |
*Maximum Width and Height values listed are Standard sizing. **With clear insulated glass ***With Clopay's proprietary polyurethane Intellicore insulation.
Insulated Steel Full-View Doors
| Model | Section Thickness | Emboss | Exterior Gauge | Section Design | Insulation | R-Value Solid* | R-Value w/Glass** | Thermal Break | Max Width✭ | Max Height✭ |
|---|---|---|---|---|---|---|---|---|---|---|
| EX3729 | 2" | Stucco | 27 | Minor Ribbed | Polyurethane*** | 18.4 | 8.0 | Yes | 16'2" | 14'0" |
| EX3728 | 2" | Stucco | 27 | Flush | Polyurethane*** | 18.4 | 8.0 | Yes | 16'2" | 14'0" |
| EX3709 | 1-3/8" | Stucco | 27 | Minor Ribbed | Polyurethane*** | 12.9 | 5.9 | Yes | 16'2" | 14'0" |
| EX3708 | 1-3/8" | Stucco | 27 | Flush | Polyurethane*** | 12.9 | 5.9 | Yes | 16'2" | 14'0" |
| EX3209 | 2" | Stucco | 24 | Minor Ribbed | Polystyrene | 9.1 | 4.4 | Yes | 16'2" | 14'0" |
| EX3208 | 2" | Stucco | 24 | Flush | Polystyrene | 9.1 | 4.4 | Yes | 16'2" | 14'0" |
| EX3159 | 1-3/8" | Stucco | 27 | Minor Ribbed | Polystyrene | 6.5 | 3.4 | Yes | 16'2" | 14'0" |
| EX3158 | 1-3/8" | Stucco | 27 | Flush | Polystyrene | 6.5 | 3.4 | Yes | 16'2" | 14'0" |
*R-values calculated per DASMA TDS-163 on a solid door **R-values calculated per DASMA TDS-163 using weighted average with 3/4" insulated glass. ***Clopay's proprietary polyurethane Intellicore insulation. ✭Maximum Width and Height values listed are Standard sizing.
Energy Series
| Model | Section Thickness | Emboss | Ext. Steel Pattern | Ext. Steel Gauge | R-Value* | Thermal Break | Max Width✭ | Max Height✭ |
|---|---|---|---|---|---|---|---|---|
| EX3220 | 2" | Stucco | Flush | 20 Gauge | 9.1 | Thermally broken | 16'2" | 14'0" |
| EX3213 | 2" | Woodgrain | Raised panel | 24 Gauge | 9.1 | Thermally broken | 16'2" | 14'0" |
| EX3211 | 2" | Woodgrain | Flush | 24 Gauge | 9.1 | Thermally broken | 16'2" | 14'0" |
| EX3200 | 2" | Stucco | Minor ribbed | 24 Gauge | 9.1 | Thermally broken | 16'2" | 14'0" |
| EX3150 | 1-3/8" | Stucco | Minor ribbed | 27 Gauge | 6.5 | Thermally broken | 16'2" | 14'0" |
*Calculated door section R-value is in accordance with DASMA TDS-163

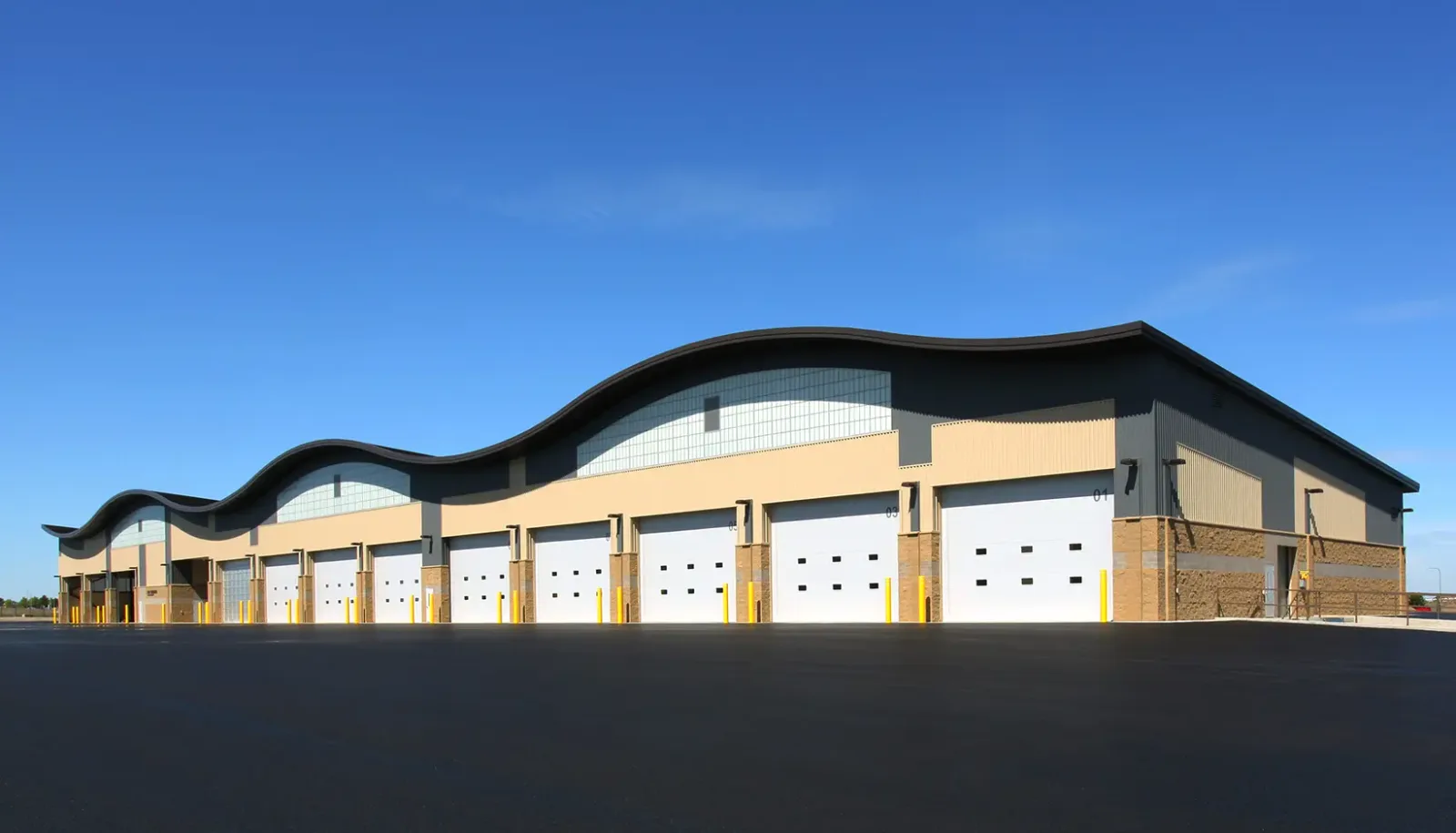

Energy Series with Intellicore®
| Model | Thickness | Emboss | Exterior Steel | Pattern | R-Value* | Std Max Width** | Std Max Height |
|---|---|---|---|---|---|---|---|
| EX3723 | 2" | Woodgrain | 27 Gauge | Raised Panel | 18.4 | 16'2" | 14'0" |
| EX3721 | 2" | Woodgrain | 27 Gauge | Flush | 18.4 | 16'2" | 14'0" |
| EX3720 | 2" | Stucco | 27 Gauge | Minor Ribbed | 18.4 | 16'2" | 14'0" |
| EX3717 | 1 3/4" | Stucco | 27 Gauge | Minor Ribbed | 16.2 | 16'2" | 14'0" |
| EX3718 | 1 3/4" | Stucco | 27 Gauge | Flush | 16.2 | 16'2" | 14'0" |
| EX3715 | 1 3/8" | Stucco | 27 Gauge | Minor Ribbed | 12.9 | 16'2" | 14'0" |
Clopay's proprietary polyurethane Intellicore ® insulation *Calculated door section R-value is in accordance with DASMA TDS-163 **For sizes over 32'2" wide consult factory for specific configuration requirements.
Operator Specifications
| Motor Design | 1.25 HP configuration serving single phase 115V/230V and 3-phase 230V configurations 3-phase 460/575V available with accessory transformer |
|---|---|
| Wall Controller | Separation of low and high voltage wiring - includes functionality of 3-button station, PLUS setting door profile, programming limits, diagnostics |
| Programming | Complete the following programming at floor level: set limits; choose door profiles for speed; set operating modes; select photo entrapment devices |
| Display | Provides textual status indications including - Absolute cycle count - Service cycle count - Diagnostics messages - Door/operator status |
| Cycle Counter | Re-settable cycle counter via the wall controller and/or through MyQ facility |
| Limit Settings | Simple electronic push-button setup via the wall controller |
Options
Aluminum Panel (Color Matched)
Midnight Gray Glass
Extreme™ Series must have tempered glass
*Mirrored and laminate not available in 1/2"
Glass options above only available on full-view sections. Glass thickness available in 1/8", 1/4" and 1/2". Tri-wall polycarbonate thickness available in 5/8". Low-E available on insulated glass.
*Additional cost and lead time may apply. The use of “Bronze (Painted)” is recommended due to slight color variation that may occur during the anodizing process.
**Available on select models.
Custom powder coat, Color Blast®, and anodized finishes available.
- RAL color powder coat
- 187 different powder coat offerings
- Custom Colors with Color Blast ® Garage Door Paint System
- Bronze, dark bronze, black or custom color anodized finishing
| 19-1/2” x 16” | 42” x 16” |
|---|---|
| Modern Slim Windows* |
- Custom Colors with Color Blast® Garage Door Paint System
- Bronze, dark bronze, black or custom color anodized finishing
- UL325 Approved Light Curtain
- Cable tension monitor
- Optional wireless bottom safety edge
WindCode® reinforcement available up to W5 design pressure (DP) 36 PSF, depending on door size, configuration and exposure. Doors tested 50% greater than DP.
Tek screws are used every 6” and at the ends of the sections to attach the top seal at the factory.
Glazing Material Options
Aluminum Panel (Color Matched)
Midnight Gray Glass
Extreme™ Series must have tempered glass
*Mirrored and laminate not available in 1/2"
Glass options above only available on full-view sections. Glass thickness available in 1/8", 1/4" and 1/2". Tri-wall polycarbonate thickness available in 5/8". Low-E available on insulated glass.
Color Options
*Additional cost and lead time may apply. The use of “Bronze (Painted)” is recommended due to slight color variation that may occur during the anodizing process.
**Available on select models.
Custom powder coat, Color Blast®, and anodized finishes available.
Premium finishing options include:
- RAL color powder coat
- 187 different powder coat offerings
- Custom Colors with Color Blast ® Garage Door Paint System
- Bronze, dark bronze, black or custom color anodized finishing
Glass Panel Options
| 19-1/2” x 16” | 42” x 16” |
|---|---|
| Modern Slim Windows* |
Color Options
Premium finishing options include:
- Custom Colors with Color Blast® Garage Door Paint System
- Bronze, dark bronze, black or custom color anodized finishing
Safety Features
- UL325 Approved Light Curtain
- Cable tension monitor
- Optional wireless bottom safety edge
Windcode
WindCode® reinforcement available up to W5 design pressure (DP) 36 PSF, depending on door size, configuration and exposure. Doors tested 50% greater than DP.
Factory Installed Top Seal
Tek screws are used every 6” and at the ends of the sections to attach the top seal at the factory.
Construction
EX904/EX904U
Specs/Drawings
| Model | BIM | Specifications | Installation Manual | Warranty |
|---|---|---|---|---|
| Extreme Series Operator Install Manual | — | — | — | |
| Model EX3150 | RFA | |||
| Model EX3158 | — | |||
| Model EX3159 | — | |||
| Model EX3200 | RFA | — | ||
| Model EX3208 | — | |||
| Model EX3209 | — | |||
| Model EX3211 | — | |||
| Model EX3213 | — | |||
| Model EX3220 | RFA | |||
| Model EX3708 | — | |||
| Model EX3709 | — | |||
| Model EX3715 | RFA | |||
| Model EX3717 | RFA | |||
| Model EX3718 | RFA | |||
| Model EX3720 | RFA | |||
| Model EX3721 | — | — | ||
| Model EX3723 | — | |||
| Model EX3728 | — | |||
| Model EX3729 | — | |||
| Model EX904 | — | |||
| Model EX904U | — |
Model EX3150
- BIM
- Specifications
- Installation Manual
- Warranty
Model EX3158
- Specifications
- Installation Manual
- Warranty
Model EX3159
- Specifications
- Installation Manual
- Warranty
Model EX3200
- BIM
- Installation Manual
- Warranty
Model EX3208
- Specifications
- Installation Manual
- Warranty
Model EX3209
- Specifications
- Installation Manual
- Warranty
Model EX3211
- Specifications
- Installation Manual
- Warranty
Model EX3213
- Specifications
- Installation Manual
- Warranty
Model EX3220
- BIM
- Specifications
- Installation Manual
- Warranty
Model EX3708
- Specifications
- Installation Manual
- Warranty
Model EX3709
- Specifications
- Installation Manual
- Warranty
Model EX3715
- BIM
- Specifications
- Installation Manual
- Warranty
Model EX3717
- BIM
- Specifications
- Installation Manual
- Warranty
Model EX3718
- BIM
- Specifications
- Installation Manual
- Warranty
Model EX3720
- BIM
- Specifications
- Installation Manual
- Warranty
Model EX3721
- Installation Manual
- Warranty
Model EX3723
- Specifications
- Installation Manual
- Warranty
Model EX3728
- Specifications
- Installation Manual
- Warranty
Model EX3729
- Specifications
- Installation Manual
- Warranty
Model EX904
- Specifications
- Installation Manual
- Warranty
Model EX904U
- Specifications
- Installation Manual
- Warranty
Brochures
Brochure Extreme Series
The Clopay® Extreme™ Series High Performance Sectional Door System boosts productivity and delivers on style.

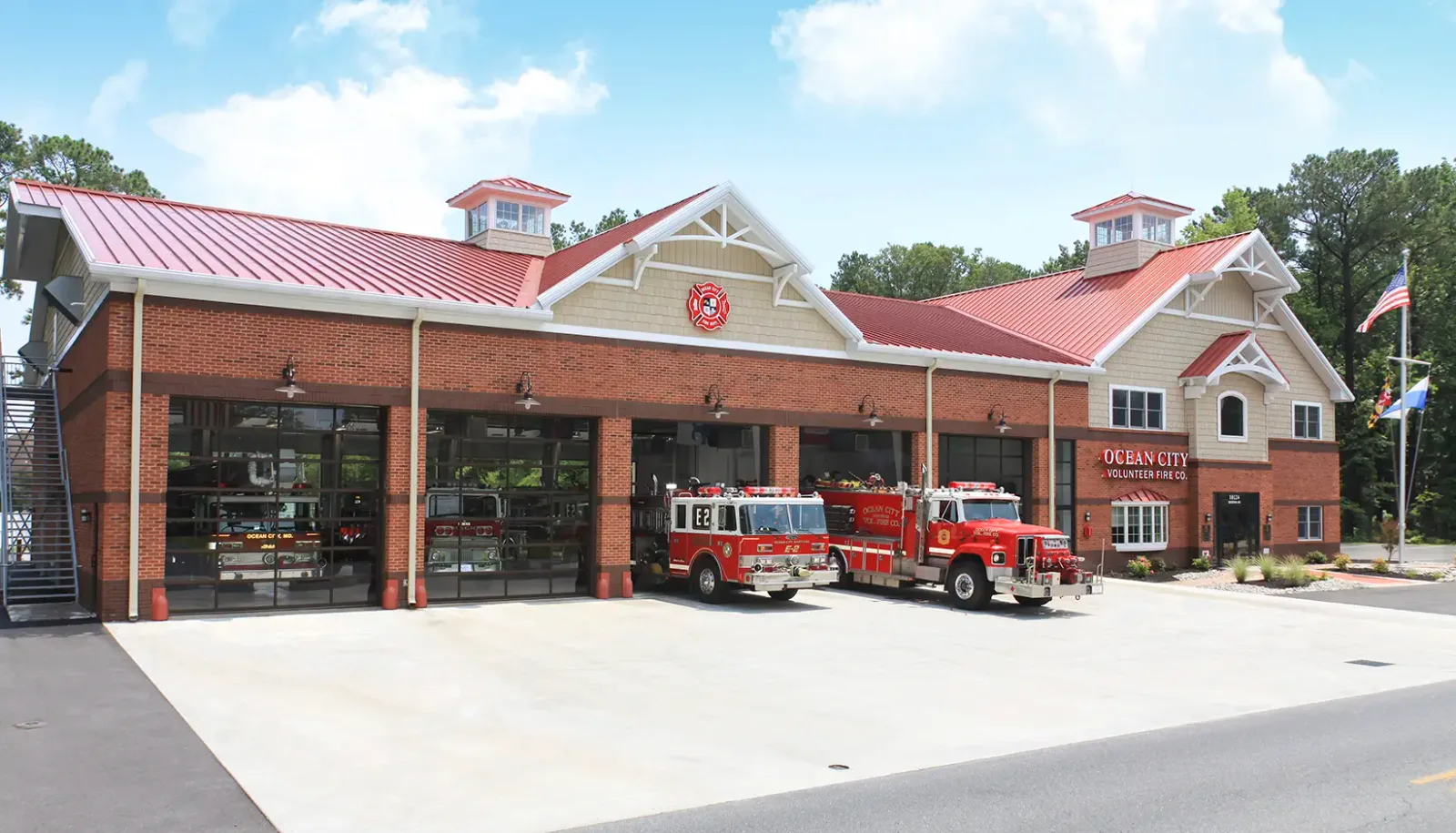

Brochure Extreme Series Fire Station Solution
Designed with fire stations in mind, Extreme™ Series Sectional Doors are performance-forward, opening 3X faster than standard doors.
Springs and Hardware
Learn more about our Extreme Series

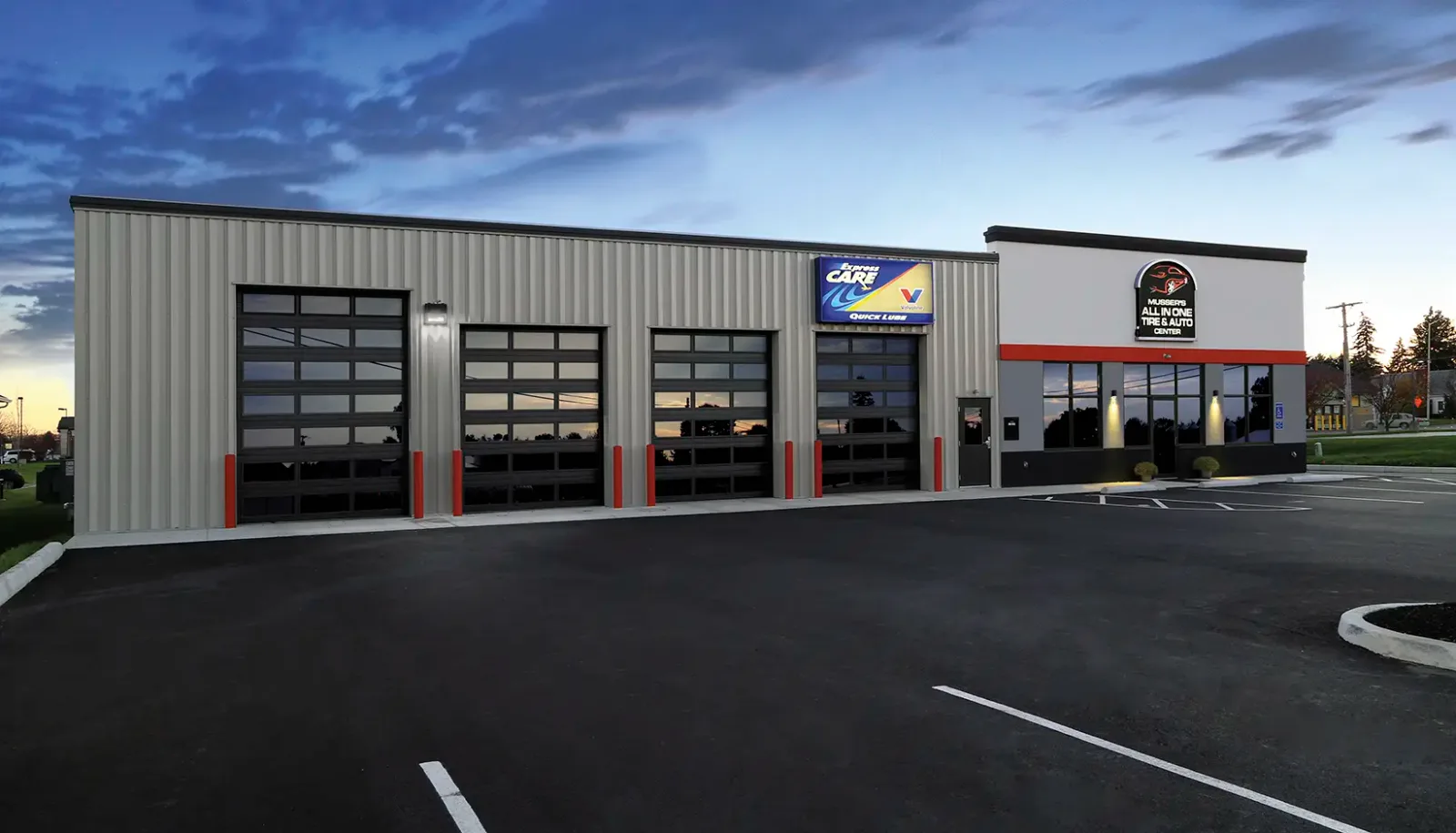

Play video for Extreme Series Extreme Series Powered by the sturdy LiftMaster opener, they're a top choice for emergency facilities, distribution centers, car dealerships and so much more. Unleash their robust potential today.
About Clopay/History
Share Your Style
Awards & Recognition
Griffon Corporation
Distribution Centers
Register Your Door
National Accounts
Copyright © 1996-2026 Clopay Corporation. All Rights Reserved
Extreme Series
Powered by the sturdy LiftMaster opener, they're a top choice for emergency facilities, distribution centers, car dealerships and so much more. Unleash their robust potential today.
About Clopay/History
Share Your Style
Awards & Recognition
Griffon Corporation
Distribution Centers
Register Your Door
National Accounts
Copyright © 1996-2026 Clopay Corporation. All Rights Reserved
You may also like
Related Commercial Series
Architectural Series — Aluminum
Full-view aluminum doors for showrooms, fire stations, and modern storefronts
Architectural Series — Steel
Insulated steel sectional doors with architectural glass options
Energy Series
Polystyrene-insulated sectional doors for warehouses and docks
Energy Series with Intellicore®
Polyurethane Intellicore® insulation for climate-controlled facilities
Request a commercial quote — Extreme™ Series
We measure, specify, and install Clopay commercial doors across Central Florida.
